Stainless Steel Tube

Stainless steel pipe is a kind of hollow, long, round steel, which is mainly widely used in industrial transportation pipelines and mechanical structural components, such as the petroleum, chemical industry, medical treatment, food, light industry, mechanical instrumentation, etc. In addition, when the bending and torsional strength are the same, the weight is lighter, so it is also widely used in manufacturing mechanical parts and engineering structures. It is also commonly used as furniture, kitchen utensils, etc.

Category:

Description

Product Parameters

Material Stainless Steel Pipe
Standard ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Steel Grade 200 Series: 201,202300 Series: 301,304,304L,316,316L,316Ti,309,310,317,321400 Series: 409,410,420,430,436,444,441,440c Duplex Steel: 904L,2205,2507,2101,2520,2304
Wall Thickness 0.01-50mm
Diameter 1mm-4500mm
Manufacturing Method Cold Rolled, Hot Rolled
Manufacturing Technique Seamless, Welded (ERW, EFW, Seamless, Spiral Welded)
Shape Round, Square, Rectangular, Oval
Surface Primary, Bright Polished, Hairline, Mirror
Color Golden, Champagne gold, Rose gold, Brown, Bronze, Brass, Black, etc.
Delivery Time In stock: 5-10 daysNot in stock: 10-20 days
Payment Terms T/T, L/C, Paypal, Credit Card, Trade Online
MOQ 1 Ton

Product Specification

Outside
Diameter		 Thickness
(mm)
DN inch mm SCH 55 SCH 10S SCH 40S STD SCH 80S
8 1⁄4’’ 13.7 – 1.65 2.24 2.24 3.02
10 3⁄8’’ 17.1 – 1.65 2.31 2.31 3.2
15 1⁄2’’ 21.3 1.65 2.11 2.77 2.77 3.73
20 3⁄4’’ 26.7 1.65 2.11 2.87 2.24 3.91
25 1’’ 33.4 1.65 2.77 3.38 3.38 4.55
32 1 1⁄4’’ 42.2 1.65 2.77 3.56 3.56 4.85
40 1 1⁄2’’ 48.3 1.65 2.77 3.68 3.68 5.08
50 2’’ 60.3 1.65 2.77 3.91 3.91 5.54
65 2 1⁄2’’ 73.0 2.11 3.05 5.16 5.16 7.01
80 3’’ 88.9 2.11 3.05 5.49 5.49 7.62
90 3 1⁄2’’ 101.6 2.11 3.05 5.74 5.74 8.08
100 4’’ 114.3 2.11 3.05 6.02 6.02 8.56
125 5’’ 141.3 2.77 3.40 6.55 6.55 9.53
150 6’’ 168 2.77 3.40 7.11 7.11 10.97
200 8’’ 219.1 2.77 3.76 8.18 8.18 12.7
250 10’’ 273.1 3.4 4.19 9.27 9.27 12.7
300 12’’ 323.9 3.96 4.57 9.53 9.53 12.7
350 14’’ 355.6 3.96 4.78 – 9.53 –
400 16’’ 406.4 4.19 4.78 – 9.53 –
450 18’’ 457.2 4.19 4.78 – 9.53 –
500 20’’ 508 4.78 5.54 – 9.53 –
550 22’’ 558.8 4.78 5.54 – 9.53 –
600 24’’ 609.6 5.54 6.35 – 9.53 –
650 26’’ 660.4 – – – 9.53 –
700 28’’ 711.2 – – – 9.53 –
750 30’’ 762 6.35 7.92 – 9.53 –

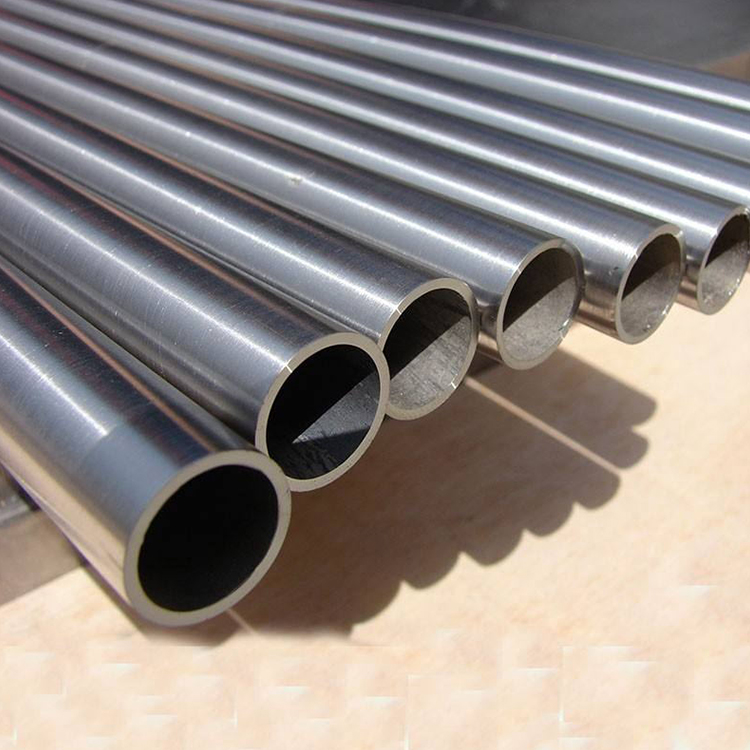

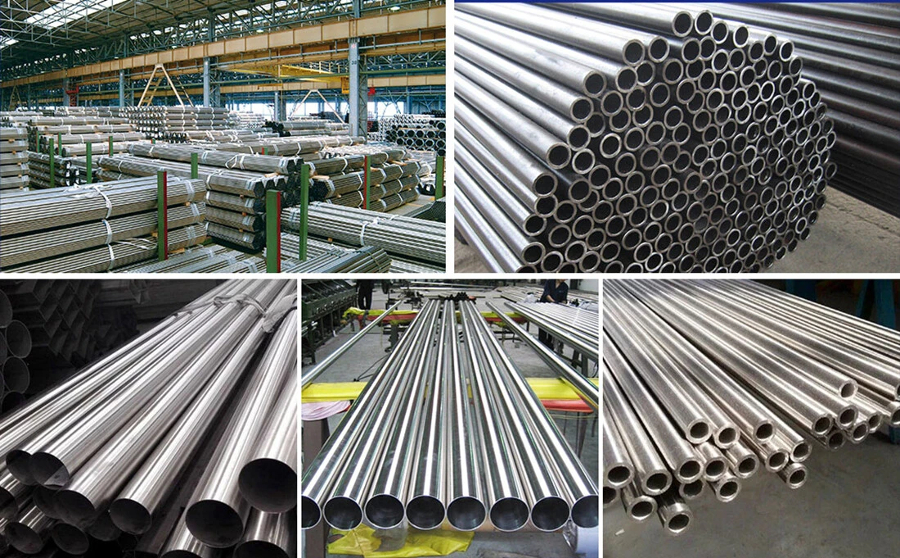

Product Display
